MOZA CRP2 Load Cell Clutch Pedal RS067

Description

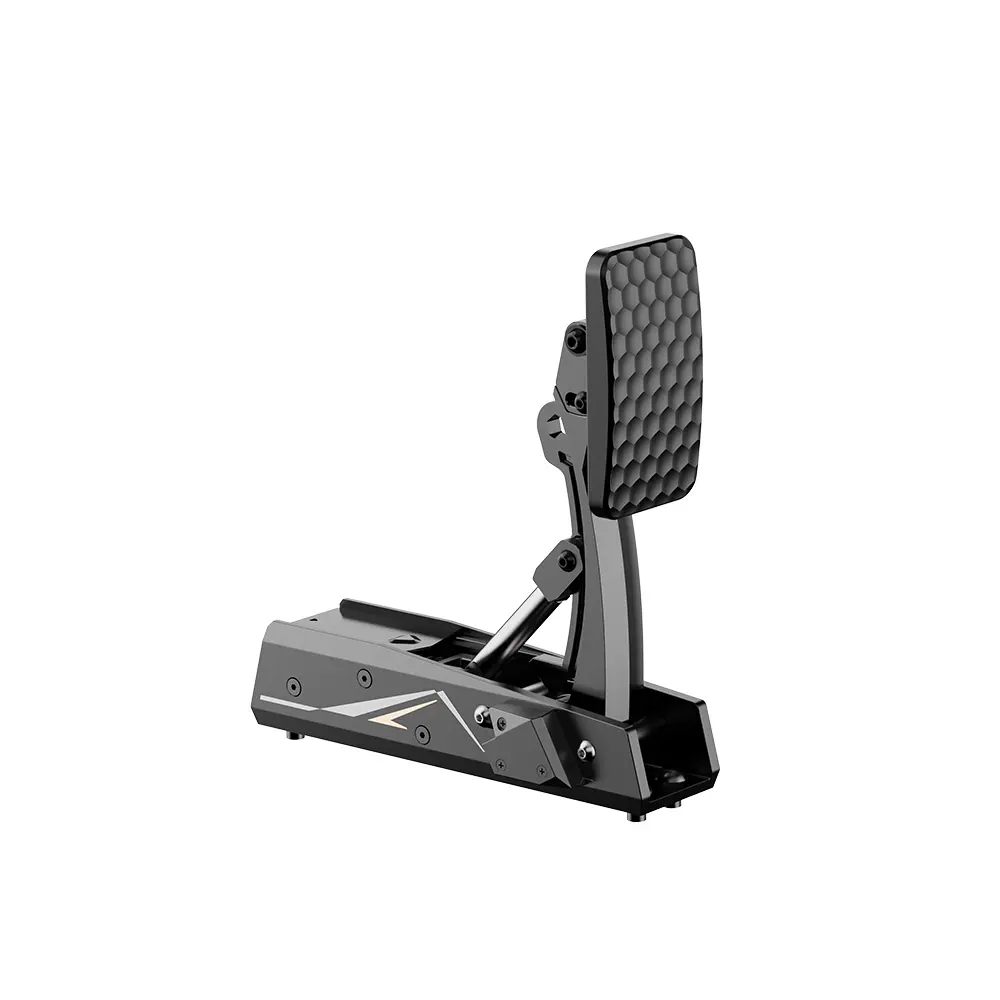

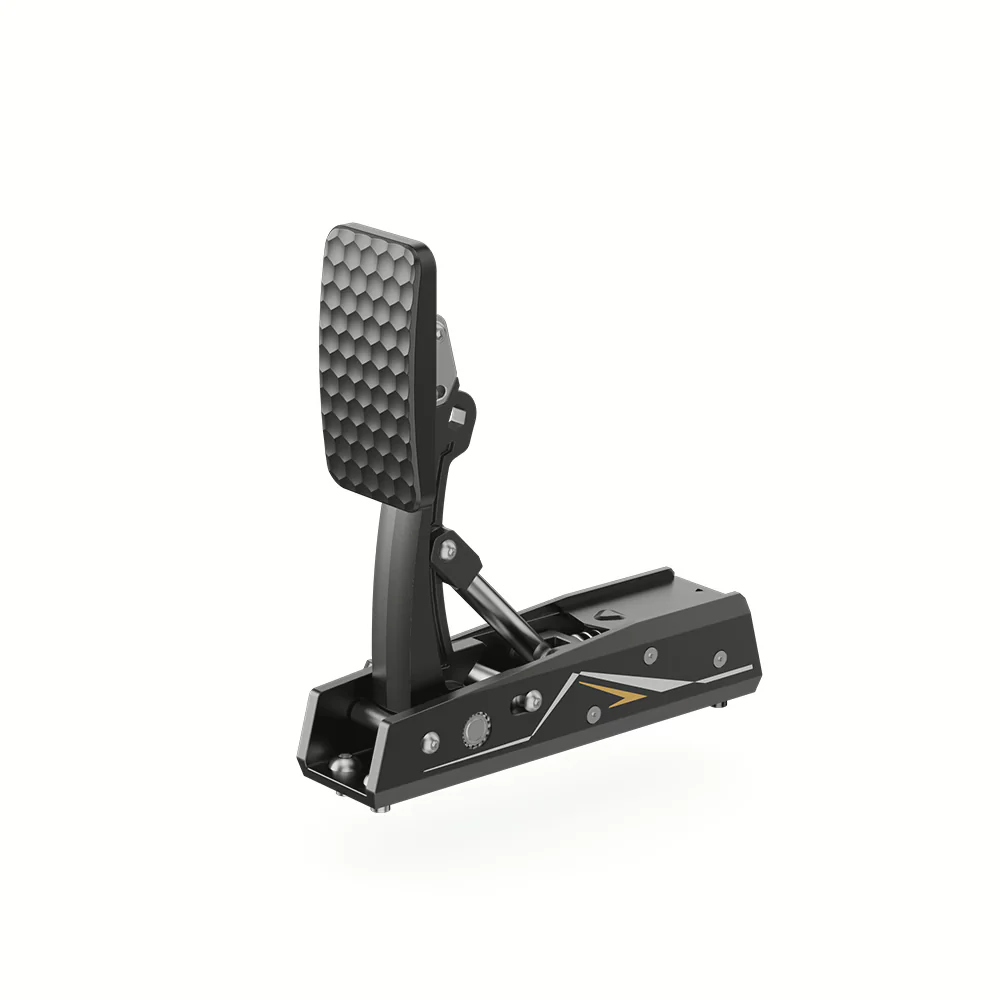

MOZA CRP2 Load Cell Clutch Pedal

Add a true three-pedal setup to your CRP2 Pedals (Throttle+Brake) and unlock standing starts, heel-and-toe downshifts, and precise launch control across your favorite sims. The CRP2 Clutch delivers a progressive, three-stage feel (light take-up, firm mid-range, crisp release) with dual-spring, continuously adjustable tension so you can dial in the bite point for classic road cars, touring cars, and open-wheel machinery alike.

Specifications:

• Pedal Body Material: Aerospace-grade aluminum alloy
• Heel Plate Material: 3K twill carbon fiber
• Base Material: High-strength steel
• Load Cell Sensor Range: 0–200kg
• Brake Sensor: Load cell sensor and angle sensor
• Angle Sensor Resolution: 15-bit (32768 PPR)
• Brake Pedal Feel: 115 standard adjustments, 1764 optional configurations
• Throttle Adjustment: Two spring options with infinite adjustment
• Clutch Adjustment: Two spring options with infinite adjustment
• Brake Travel Adjustment: 15–20°
• Throttle Travel Adjustment: 15–23°
• Clutch Travel Adjustment: 15–25°
• Pedal Angle Adjustment: 0–15°
• Pedal Face Height Adjustment: Up to 30mm
• Footrest Adjustment: Up to 30mm
• Pedal Curve Adjustment: Adjustable
• Real-time Pedal Output Display: Adjustable
• Pedal Pressure Engagement Point: Adjustable
• Pedal Surface: Biomimetic curved
• Inverted Mounting Kit: Optional
