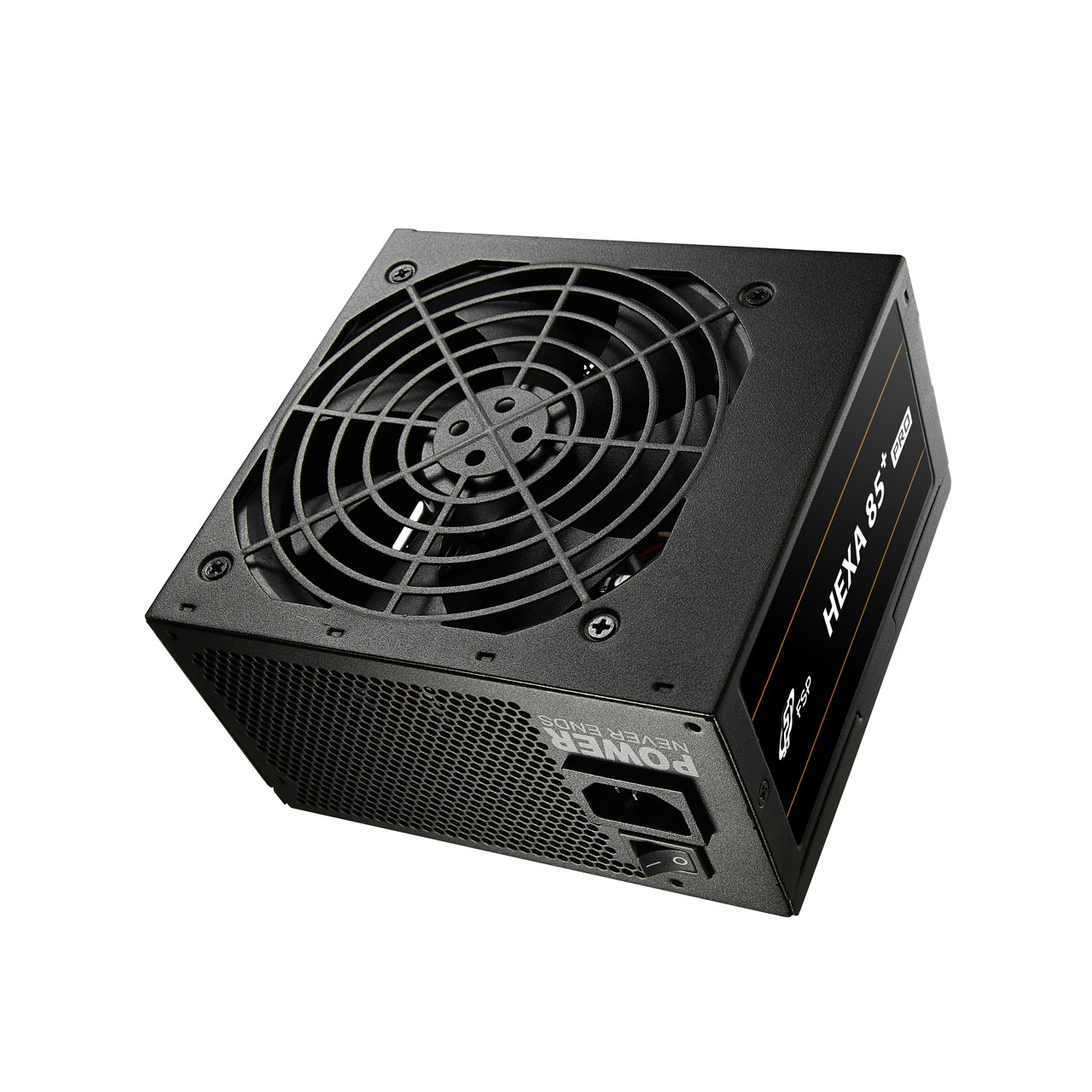

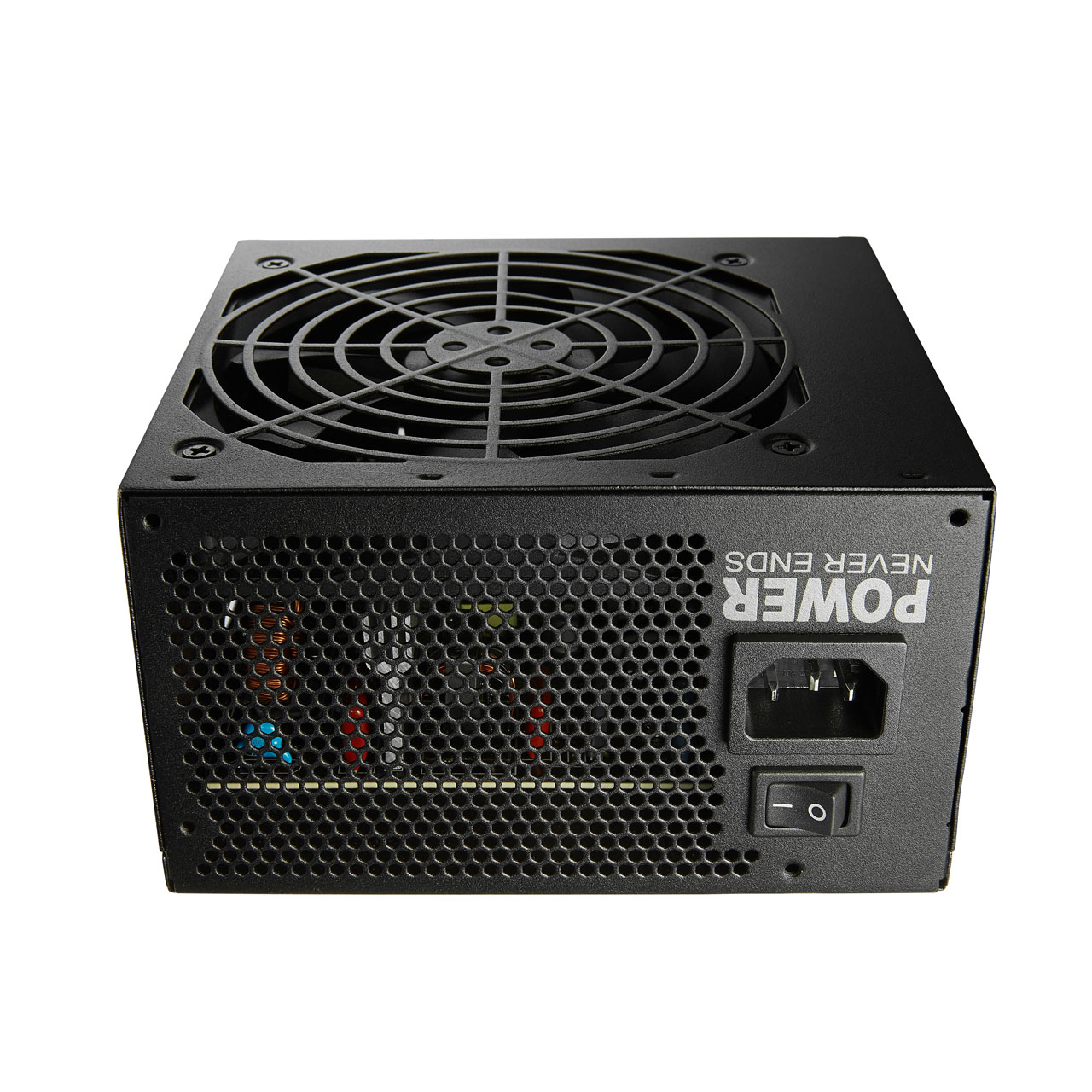

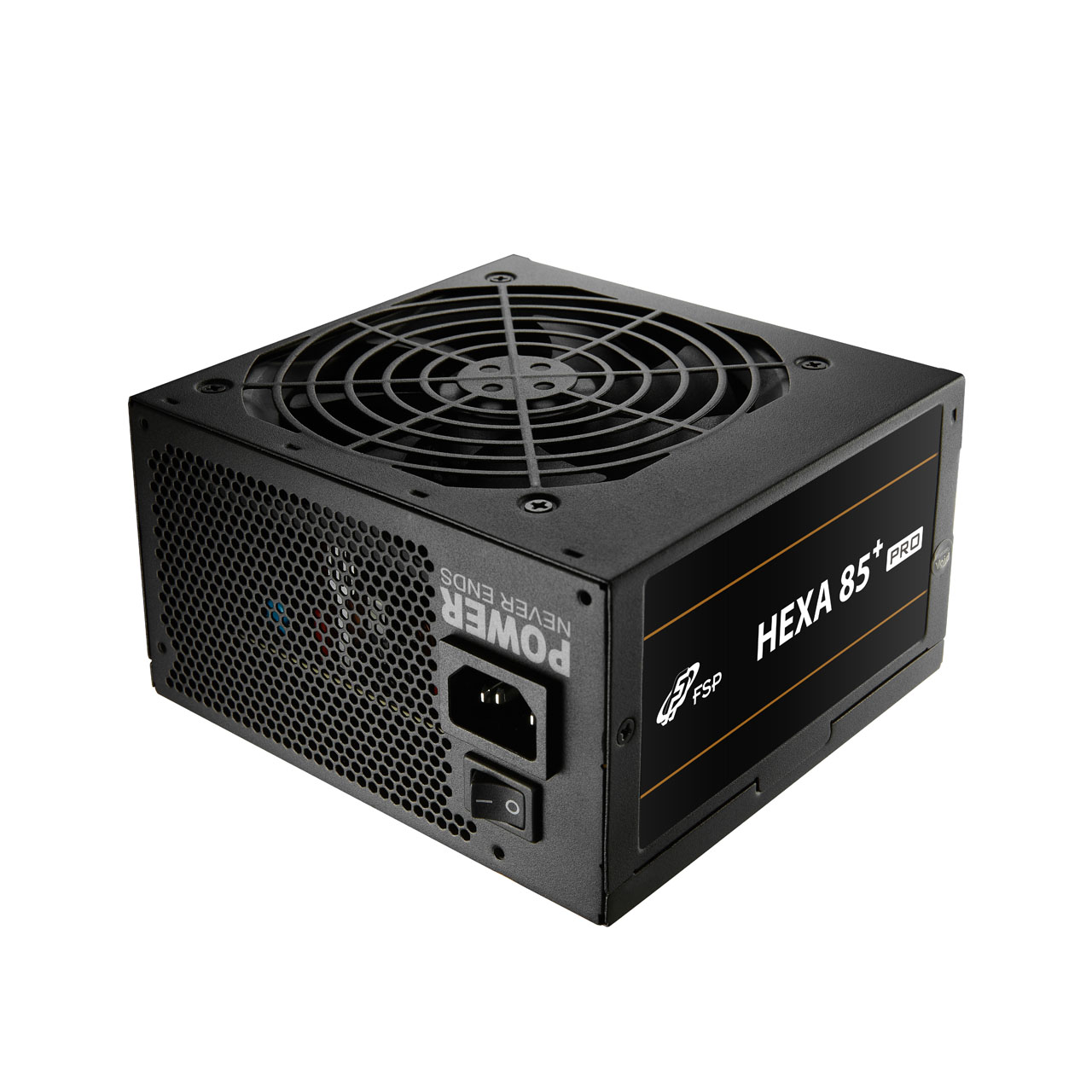

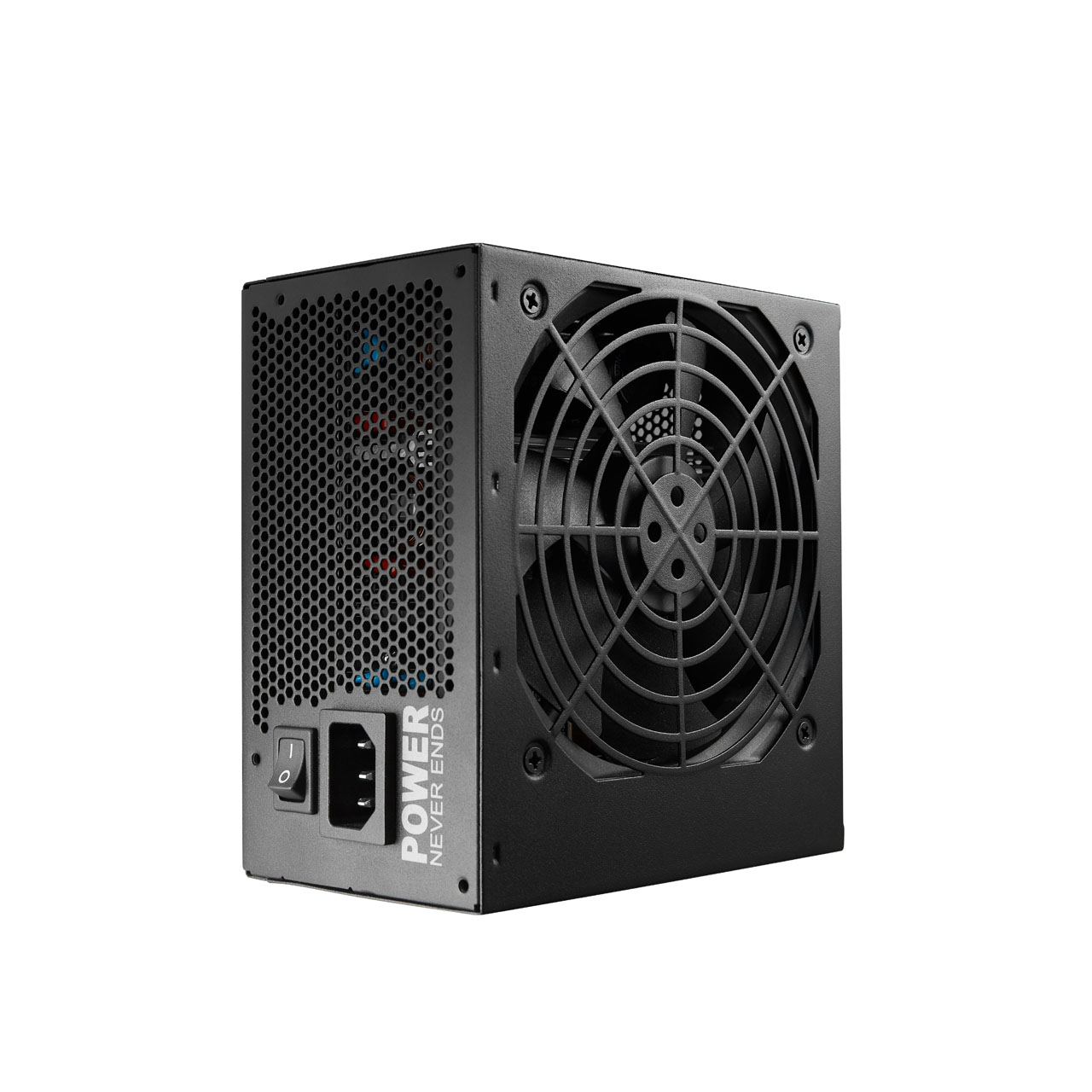

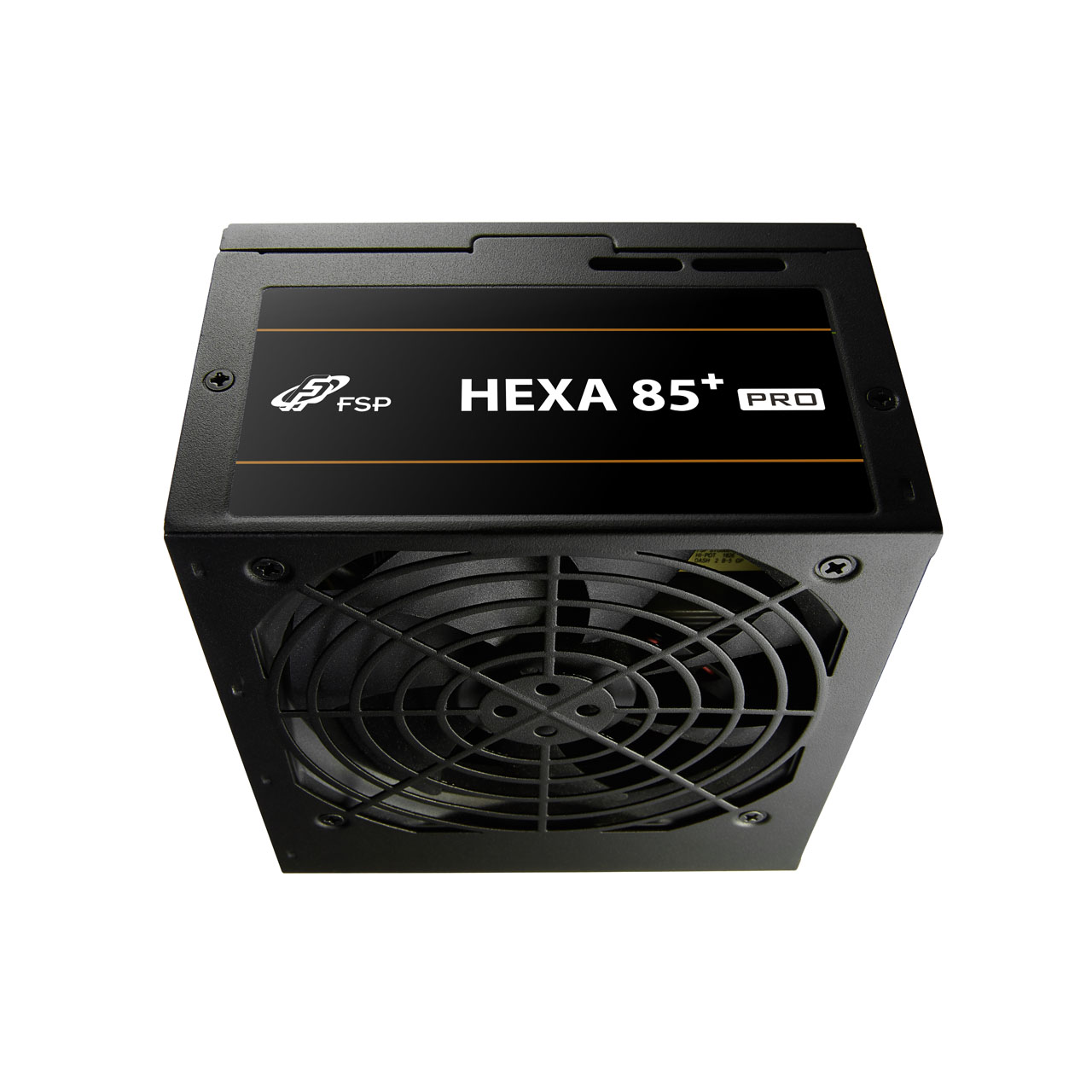

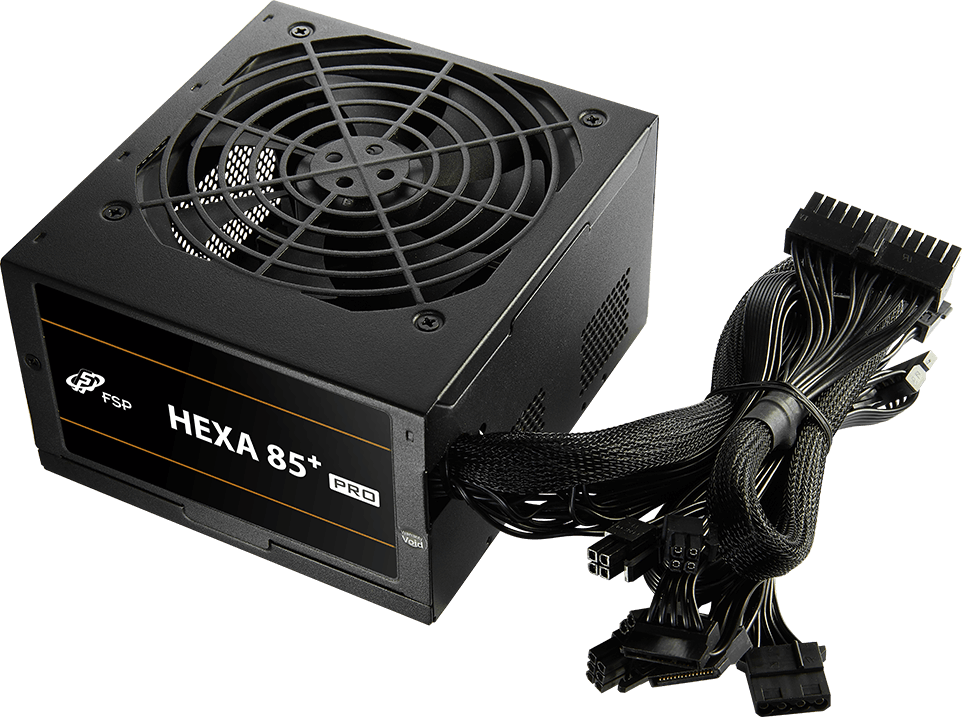

HEXA 85+ PRO 550W FSp

Description

• Complies with ATX12 v2.5 & EPS12 v2.92
• Efficiency ≧ 85% at typical load
• Active PFC ≧ 0.9
• Hold up time > 17ms at 80% load
• +12V single-rail design
• Japanese electrolytic capacitors
• +5V&3.3V DC to DC module design
• 120mm silent and long life fan
• Flat black ribbon cables
• Complete protection: OCP/OVP/OPP/SCP

• Model	HA2-550
  Rated Output Power	550W
  Form Factor	ATX
  80 PLUS Certification	80 PLUS® Bronze
  Input Voltage	100-240V
  Input Current	7.5-3A
  Input Frequency	50-60Hz
  PFC	Active PFC

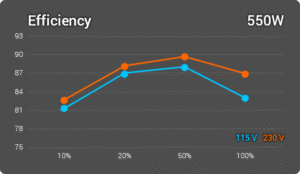

  Efficiency	≥85% at typical load
  Fan Type	Sleeve Fan, 120mm
  Dimensions(L x W x H)	150x140x86mm
  Weight	1328g
  Protection	OCP/OVP/OPP/SCP
  Warranty	5 Years
