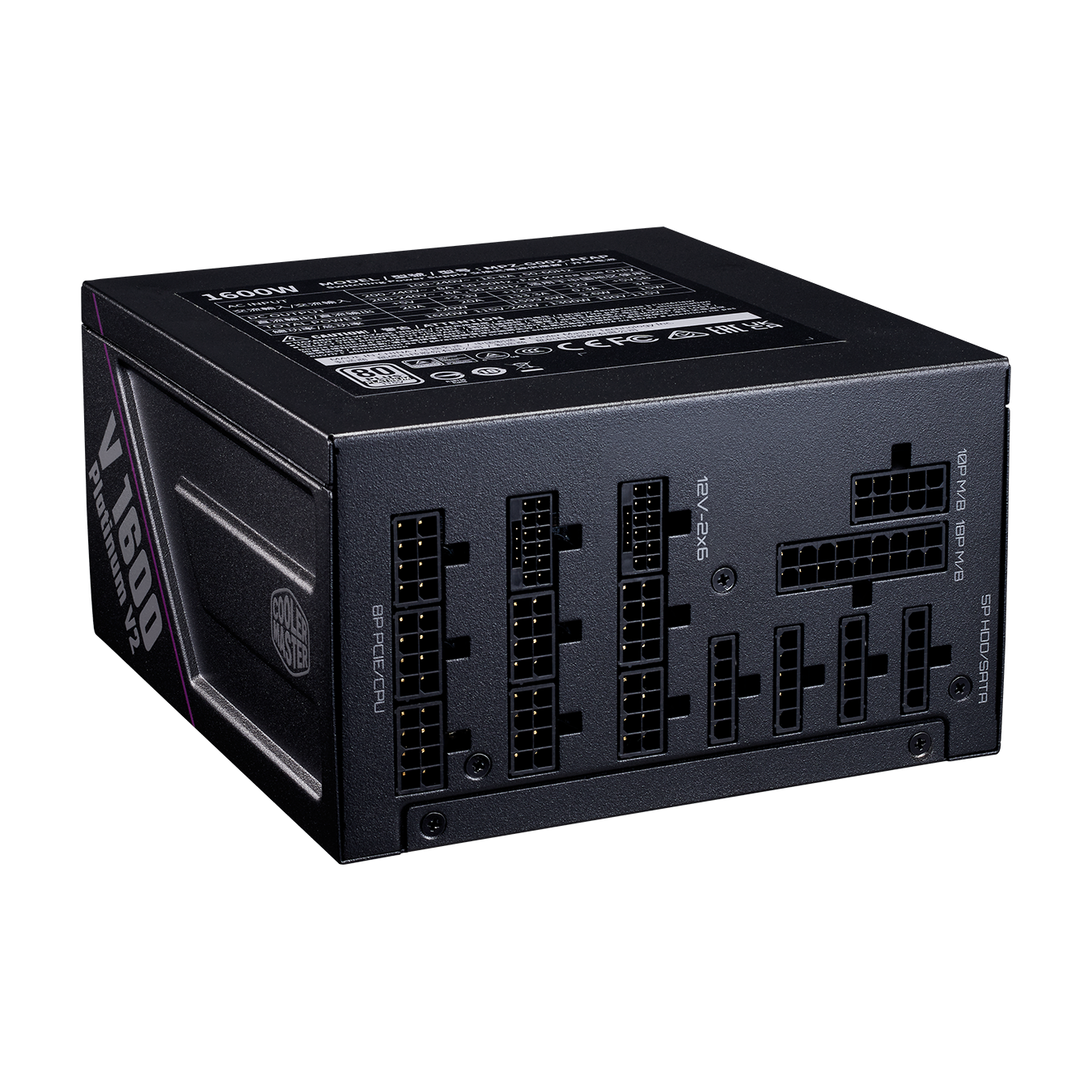

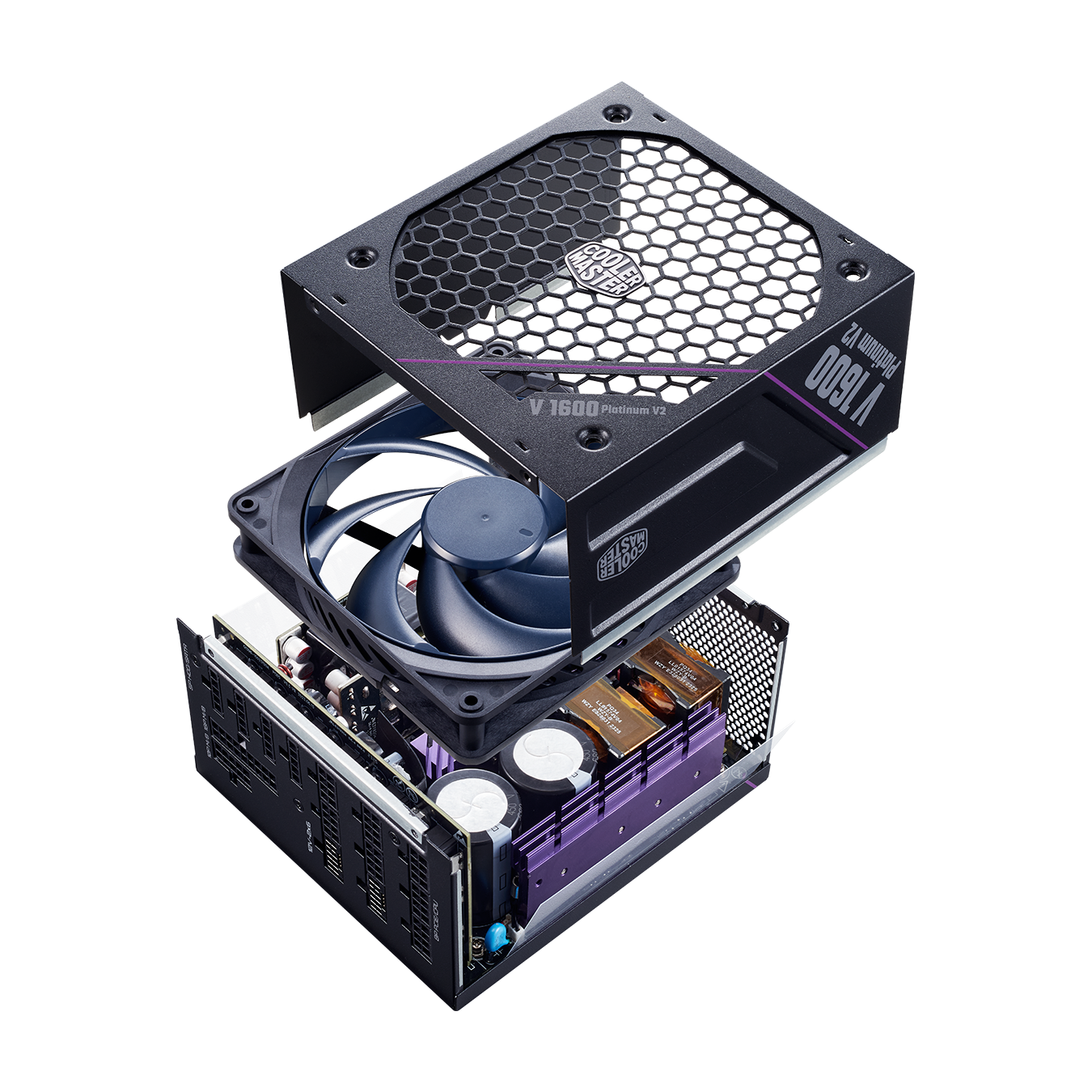

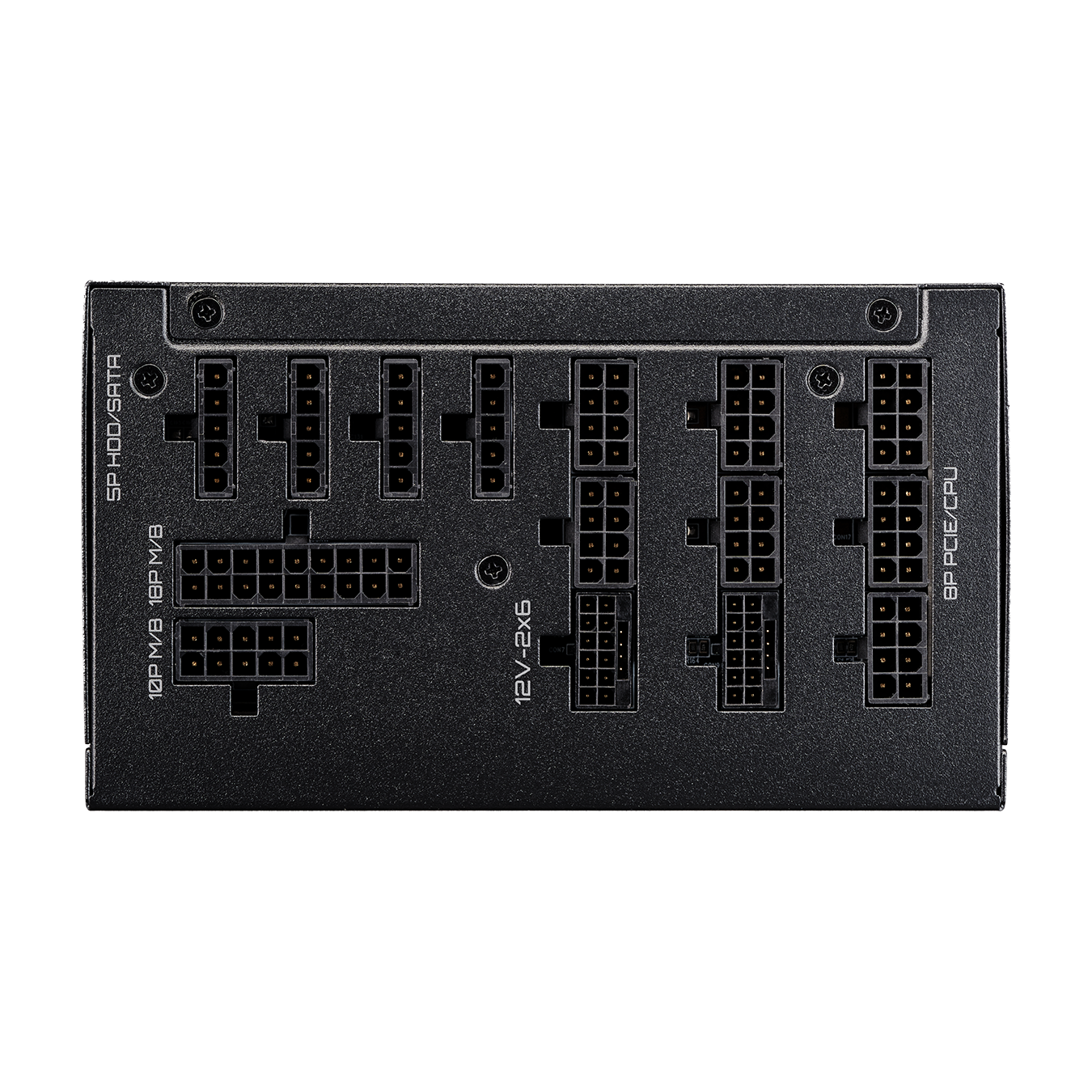

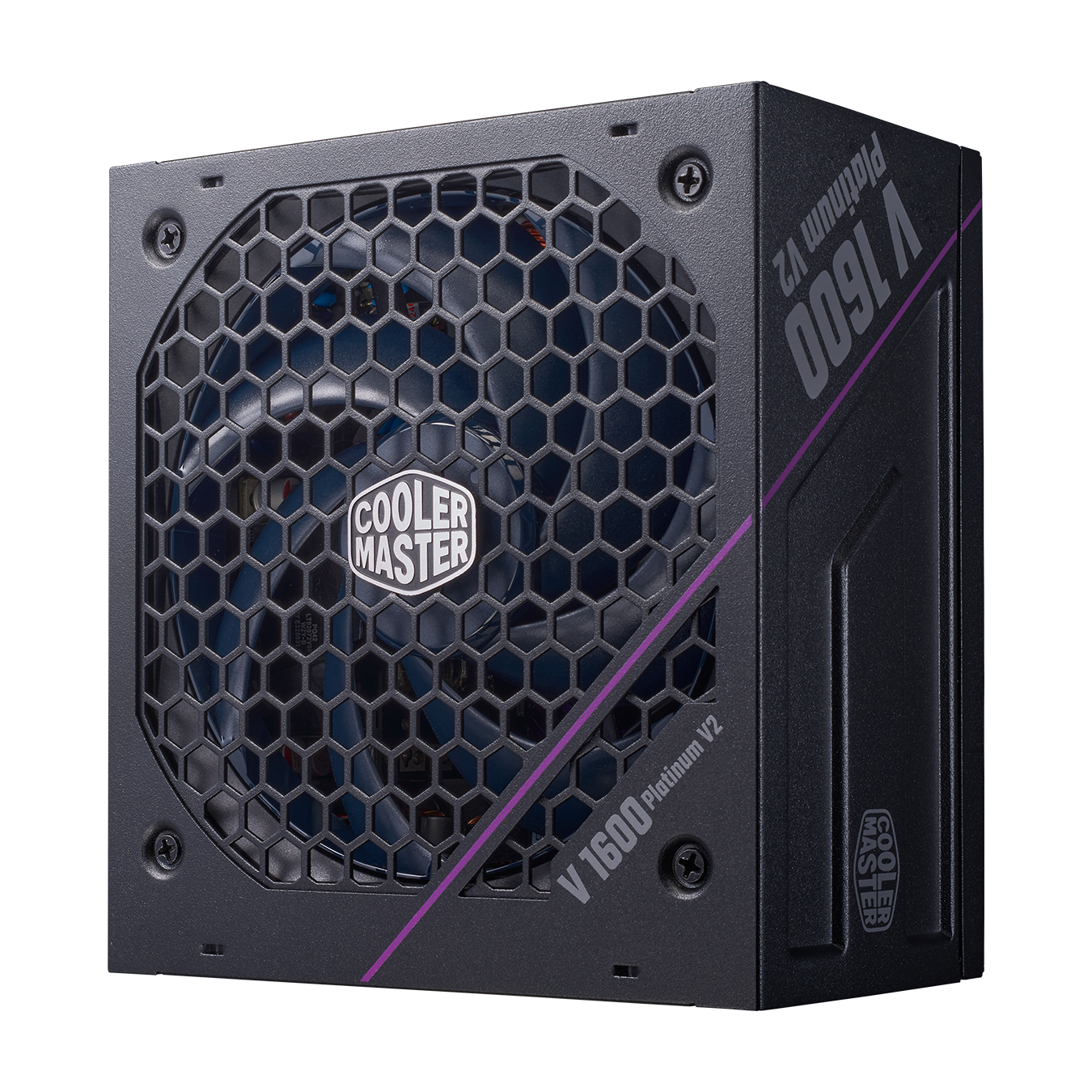

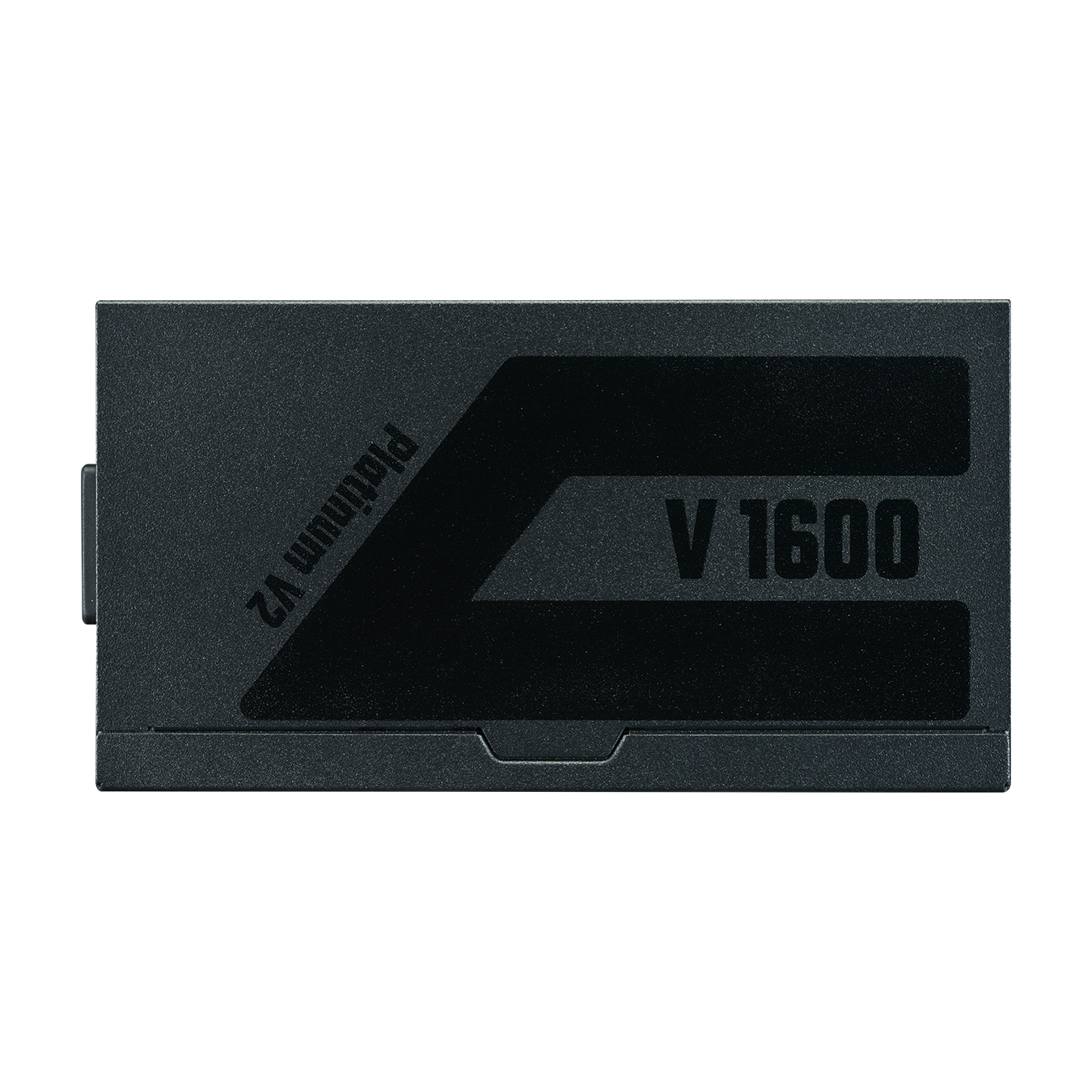

Cooler Master V1600 Platinum V2 ATX 3.1 Fully Modular SMPS

Description

• ModelMPZ-G002-AFAP
• ATX VersionATX 12V Ver. 3.1
• PFCActive PFC
• Input Voltage100-240V
• Input Current16-8A
• Input Frequency50-60Hz
• Dimensions (L x W x H)160 x 150 x 86 mm
• Fan Size135mm
• Fan BearingLDB
• Fan Speed2400±10% RPM
• Efficiency≥ 92% @ Typical Load
• 80 PLUS Rating80 PLUS Platinum
• ErP 2014 Lot 3Yes
• Operating Temperature0-50°C
• Power Good Signal100 – 150 ms
• Hold Up Time≥ 16ms
• MTBF>100,000 Hours
• ProtectionsOPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
• RegulatorycTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region’s requests.)
• ATX 24 Pin Connectors1
• EPS 4+4 Pin Connectors1
• EPS 8 Pin Connector1
• SATA Connectors16
• Peripheral 4 Pin Connectors4
• PCI-e 6+2 Pin Connectors5
• 12V-2×6 Connectors2
• SeriesV Platinum Series
• 80 Plus EfficiencyPlatinum
• ModularFully Modular
• CategoryAbove 750W
• Form FactorATX
• Watts1600
