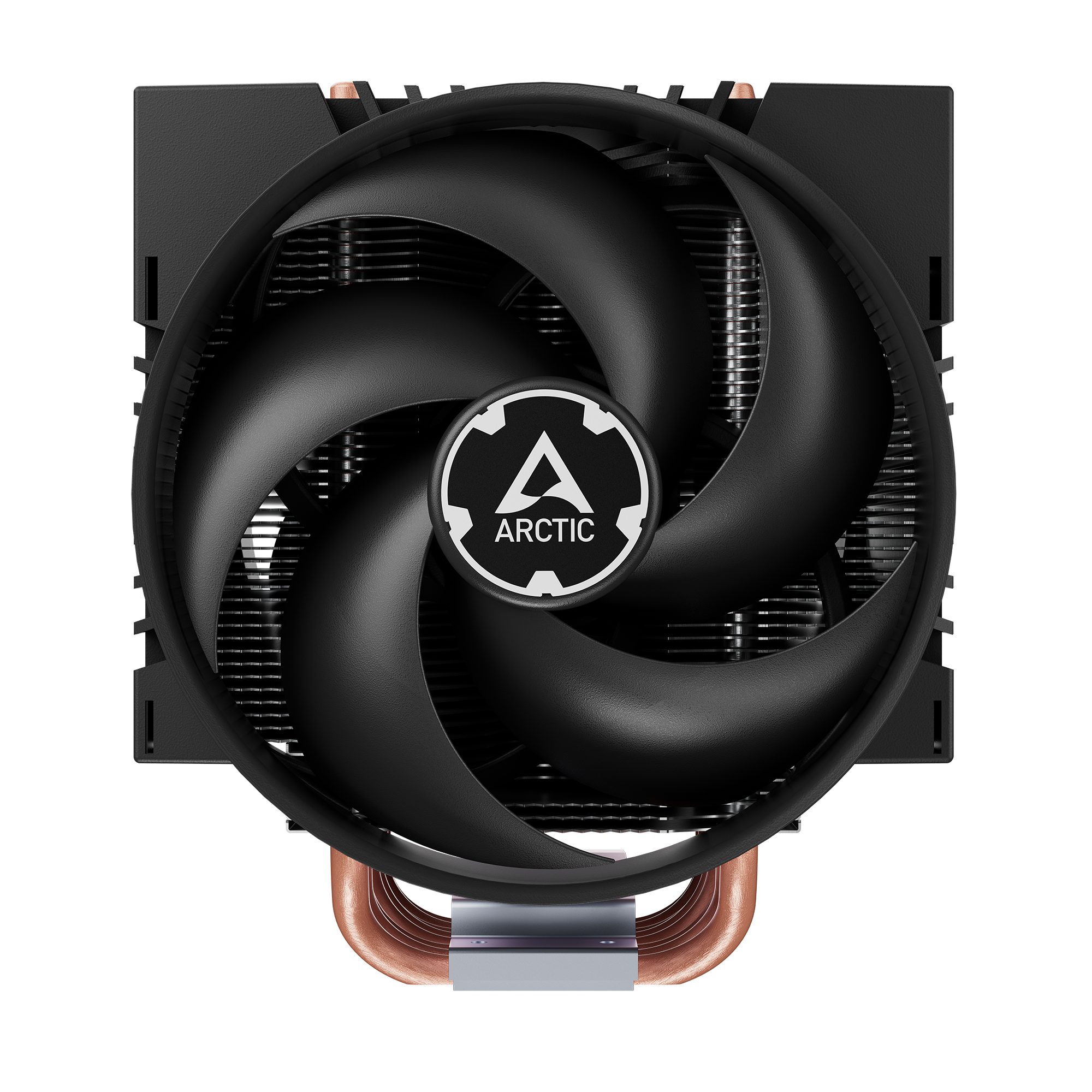

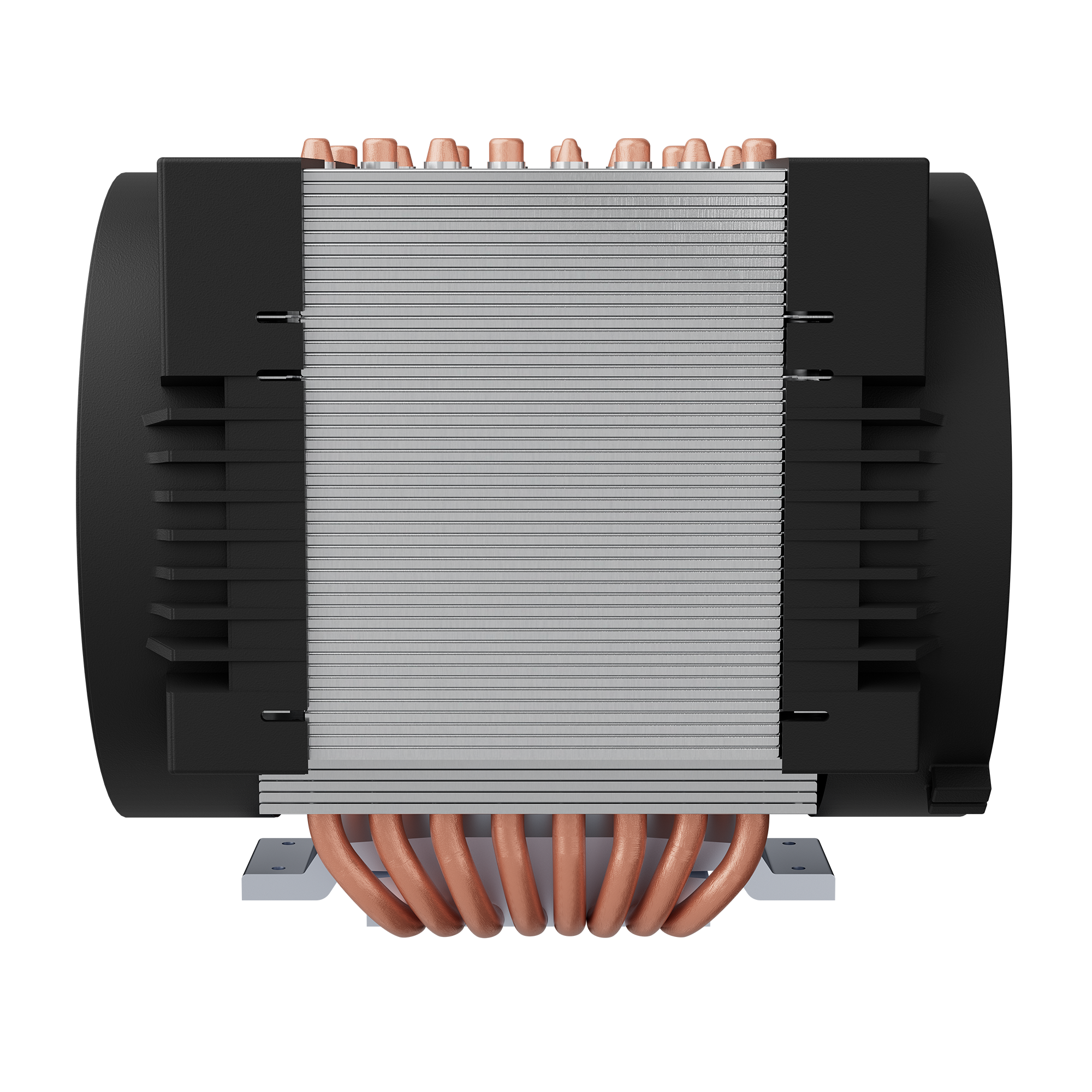

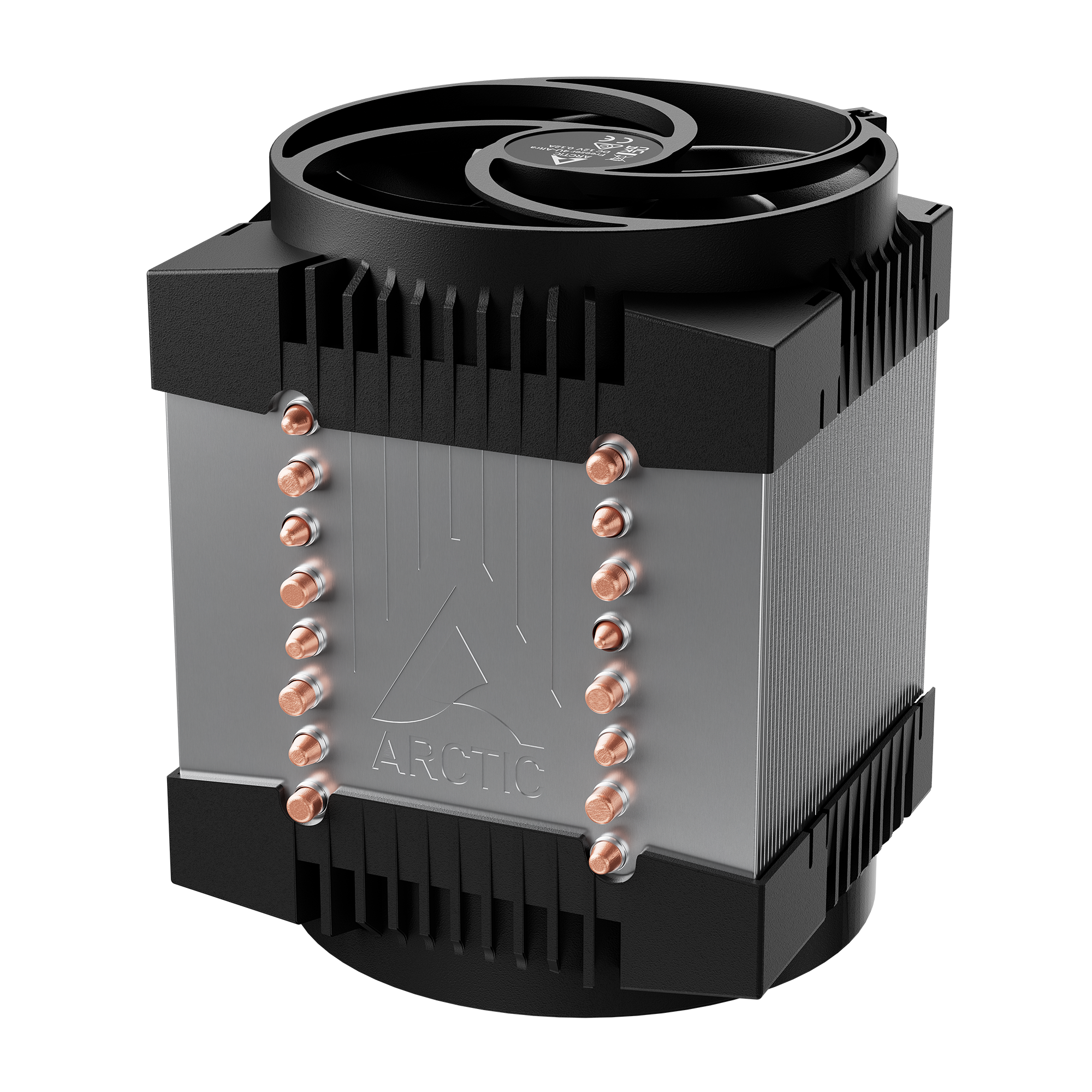

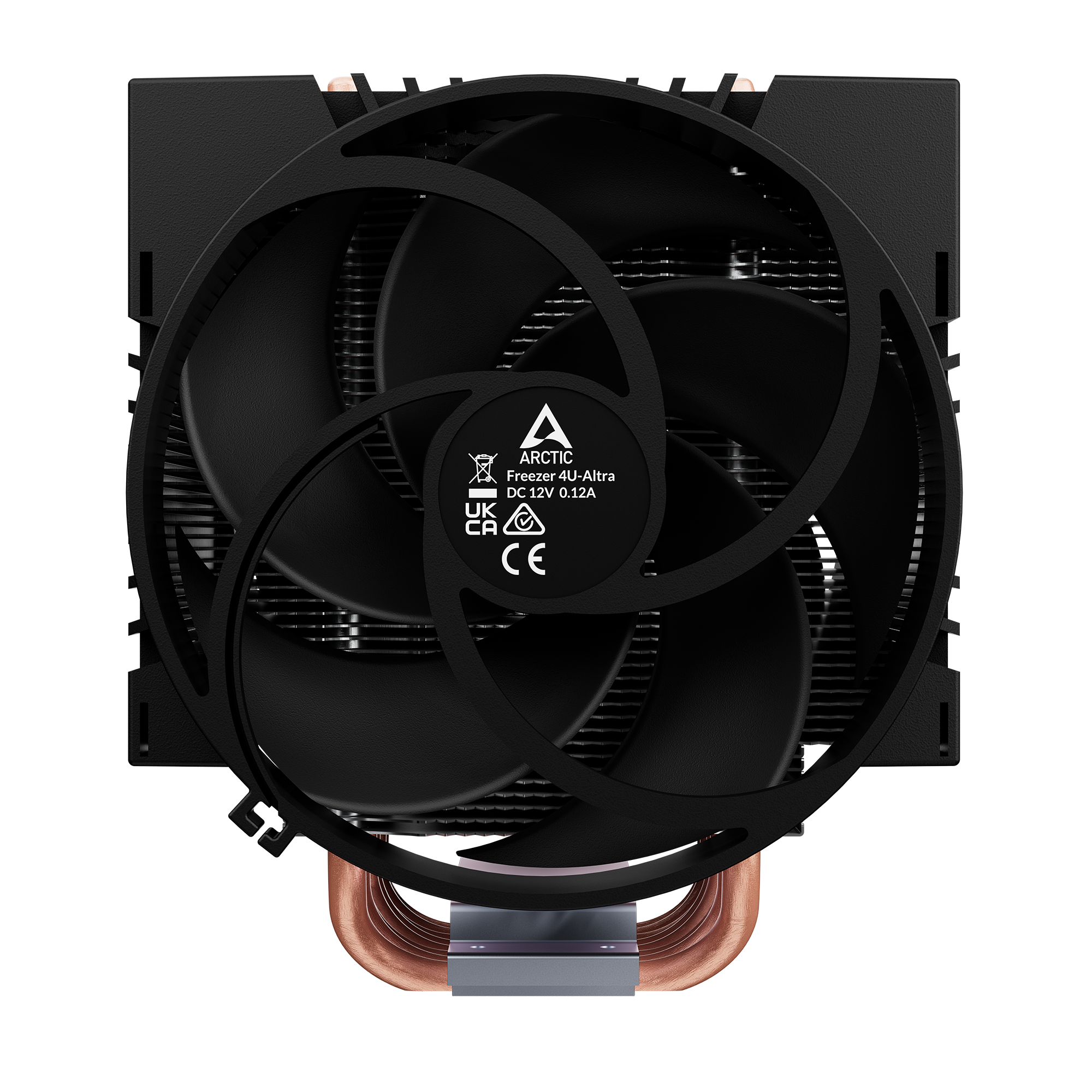

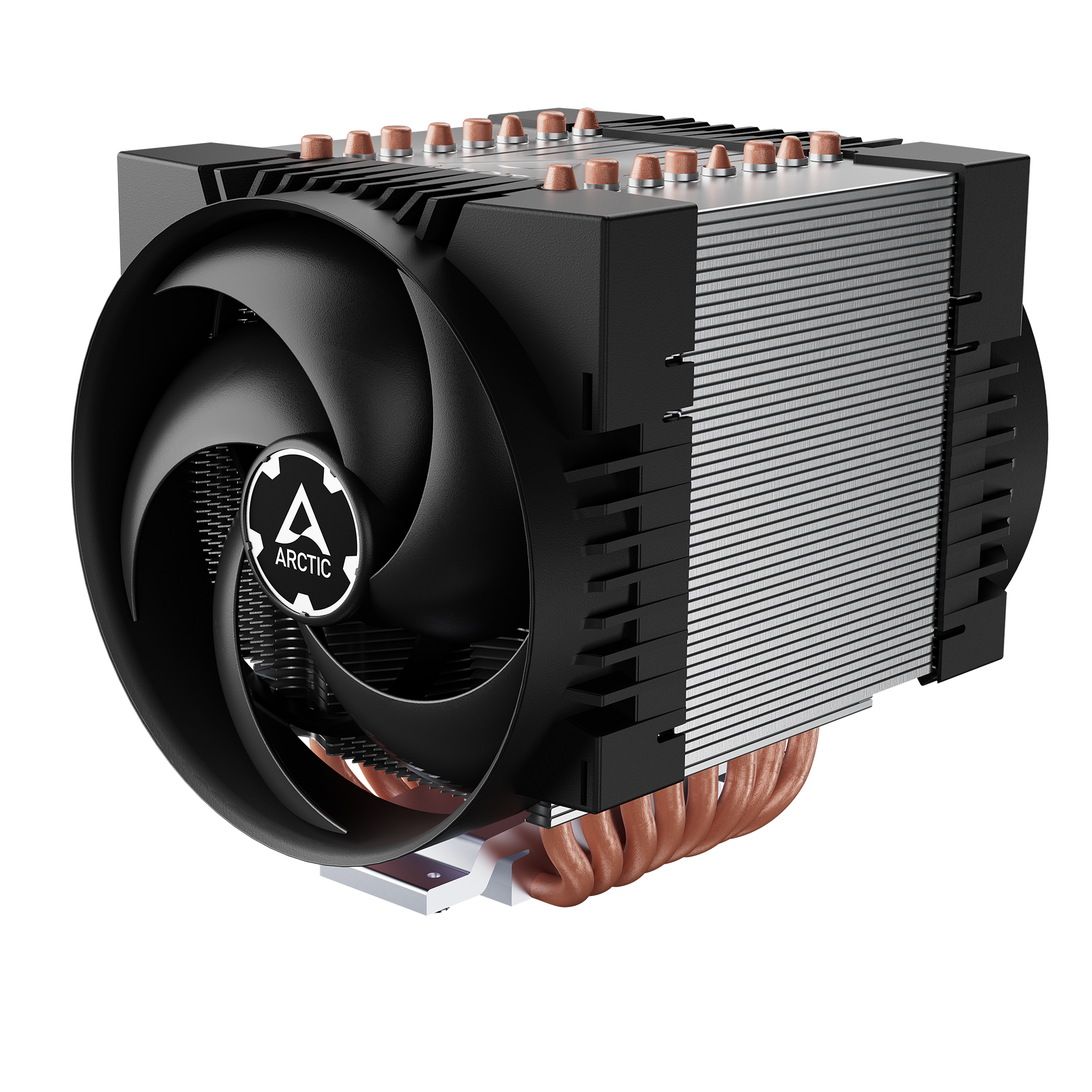

ARCTIC Freezer 4U-Altra Single Tower CPU Air Cooler

Description

Features of ARCTIC Freezer 4U-Altra Single Tower CPU Air Cooler

Compatible with Ampere LGA4926
Offering compatibility with Ampere Altra and Altra Max, and comes with a platform-specific mounting kit for straightforward installation.

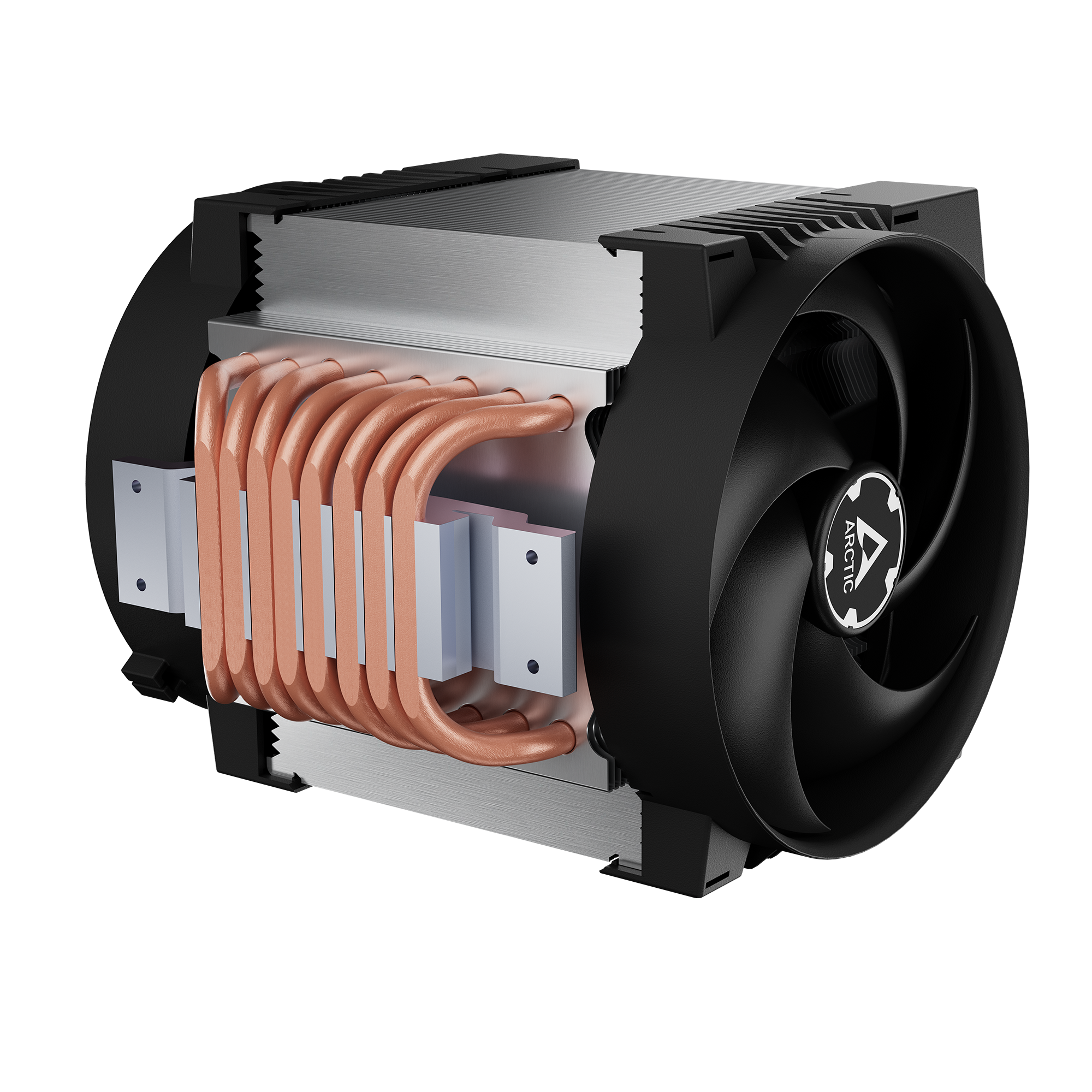

Eight 6 mm Direct-Touch Heat Pipes
Large contact surface with heat pipes ensure efficient heat transfer for workstation and server processors.

High Performance Push-Pull Fans
Leveraging ARCTIC’s P Series strengths and dual ball bearing, they generate high static pressure to ensuring optimal airflow through the extra depth fins for enhanced cooling.

Engineered to Reduce Total Ownership Costs
Engineered for an outstanding power usage efficiency (PUE), the Freezer 4U-Altra dissipates up to 350 W of CPU heat while consuming only 2.88 W, significantly reducing energy demands.

Tailored to Fit Standard 4U Server Racks
Designed to fit both classic 4U server racks and most consumer 4U cases with a height of up to 145 mm.

RAM Compatibility and Clearance
The Freezer 4U‑Altra offers a generous 53 mm of memory clearance, allowing the use of RAM modules with moderate heatsinks.

MX-7 Thermal Paste Included
Bundled with MX-7, ARCTIC’s ultimate performance thermal paste, designed to maximize thermal performance and long-term reliability.

Enhance Efficiency with Matching Chassis
Alongside the Freezer 4U‑Altra, ARCTIC also offers compatible RSC‑4U server chassis, providing superior ventilation and flexible drive support for rack‑mounted servers.

6‑Year Warranty – Confidence That Endures
Server cooling demands reliability. To demonstrate our commitment to long‑term performance, we offer a 6‑year warranty.

Specifications of ARCTIC Freezer 4U-Altra Single Tower CPU Air Cooler

Model No ACFRE00226A
Compatibility Ampere: LGA4926
Thermal Compound MX-7 (0.8 g) Included
Operating Ambient Temperature 0–40 °C
Dimensions 156 (L) × 124 (W) × 148 (H) mm
Weight 1288 g
Heat Pipe 8 × Ø 6 mm
Heat Pipe Material Copper
Number of Fins 57
Fin Thickness 0.4 mm
Fin Material Aluminium
Fan 2 × 120mm PWM Fans
Fan Amount 2
Fan Speed 400–2300 rpm, PWM Controlled
Airflow 71.9 CFM / 122.16 m³/h
Static Pressure 3.3 mm H₂O
Noise Level 0.5 Sone
Fan Bearing Dual Ball Bearing
Typical Voltage 12 V DC
Start Up Voltage 8 V DC
Current 0.12 A
Cable Length 300 mm
Connector 4-Pin PWM Connector + 4-Pin Plug
RAM Clearance 53 mm
Box Dimension 211 (L) × 160 (W) × 141 (H) mm
Gross Weight 1502 g
EAN 4895265001406
UPC 840033404082
Warranty 6 Years
