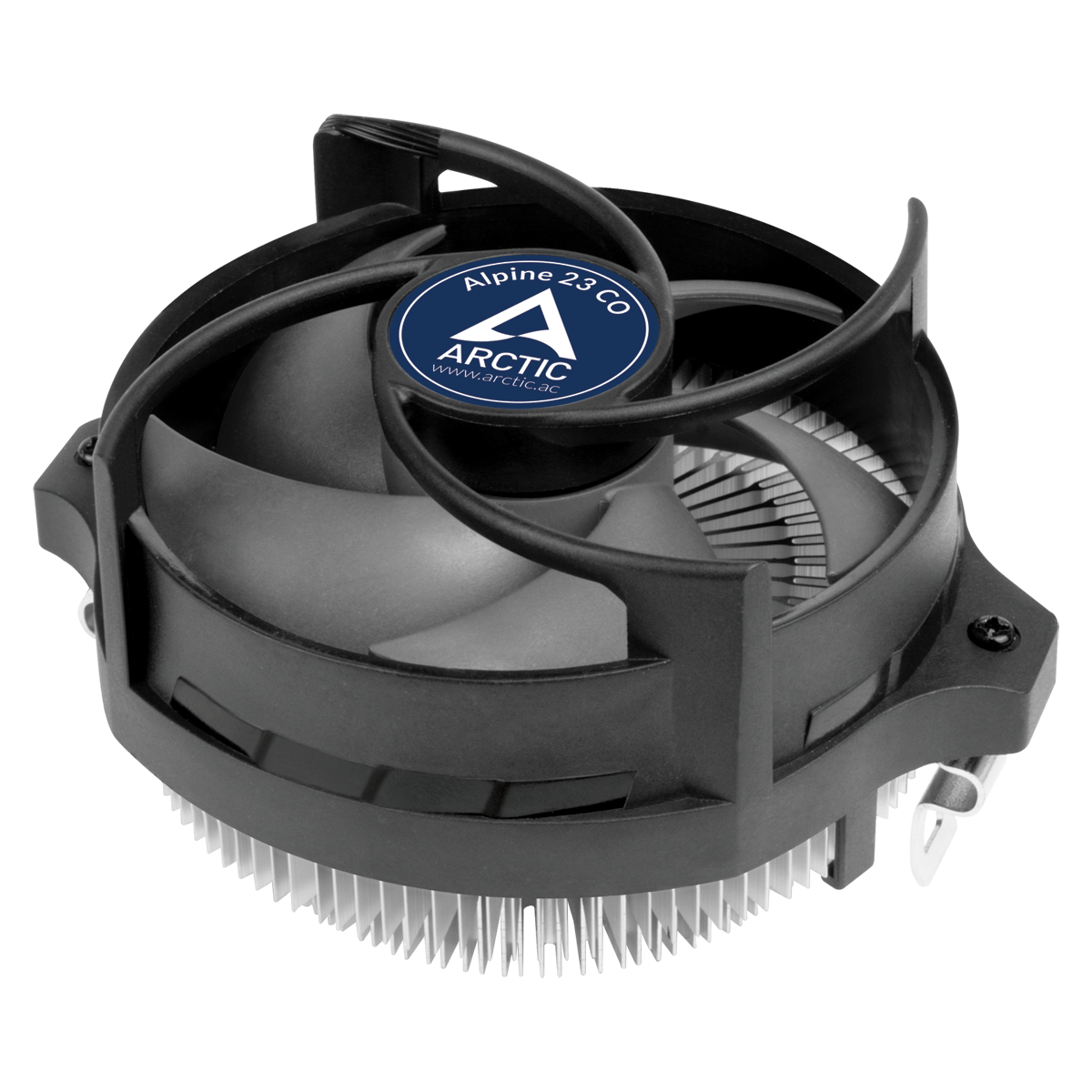

ARCTIC Alpine 23 CO Single Tower CPU Air Cooler AMD

Description

Features of ARCTIC Alpine 23 CO Single Tower CPU Air Cooler

Future-Proof Compatibility
At the end of 2022, AMD released the AM5 socket, the successor to its popular AM4 platform. Because all mechanical dimensions remain identical, we can guarantee the compatibility of ARCTIC coolers with AMD’s new processors.

Improved Cooling Performance by New Production Process

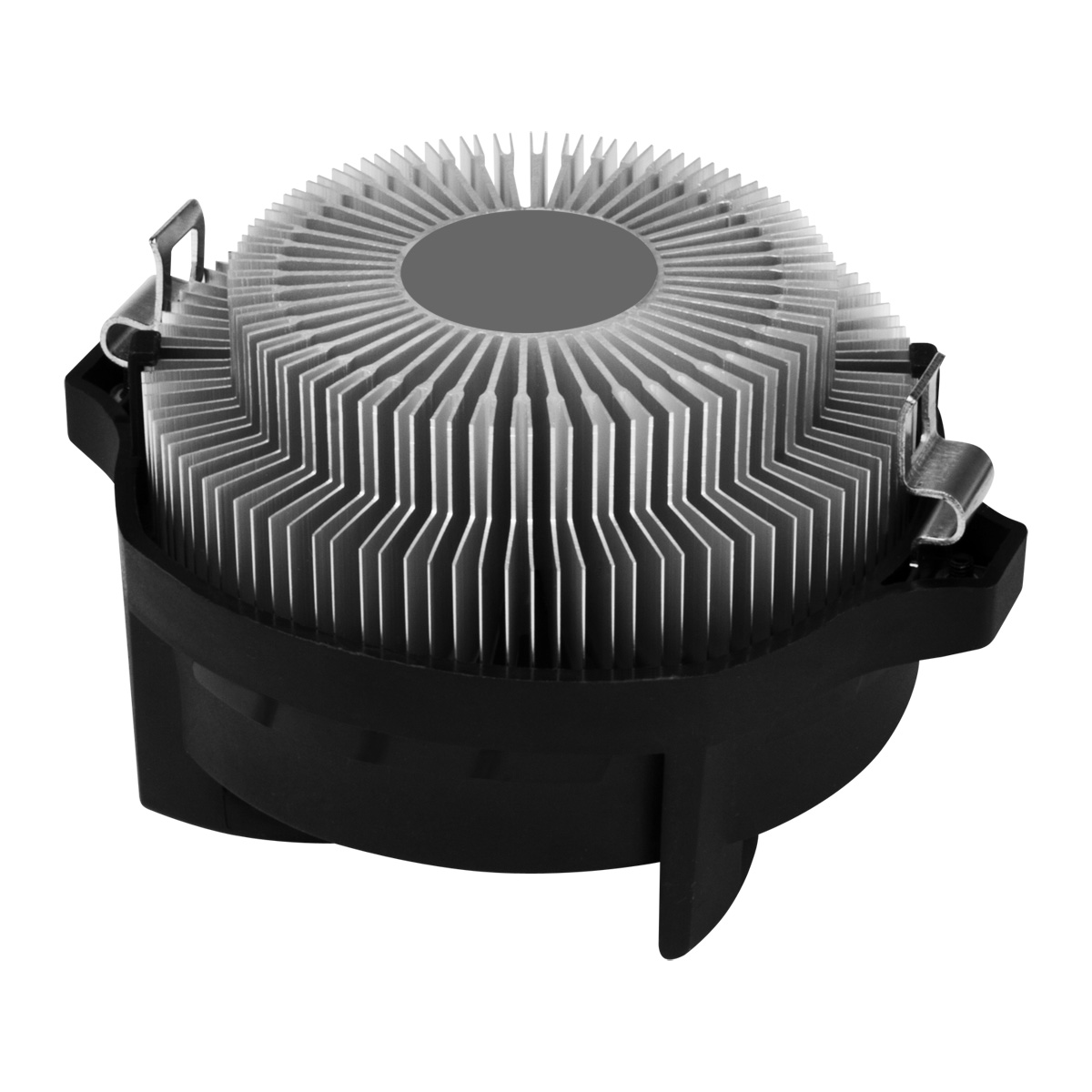

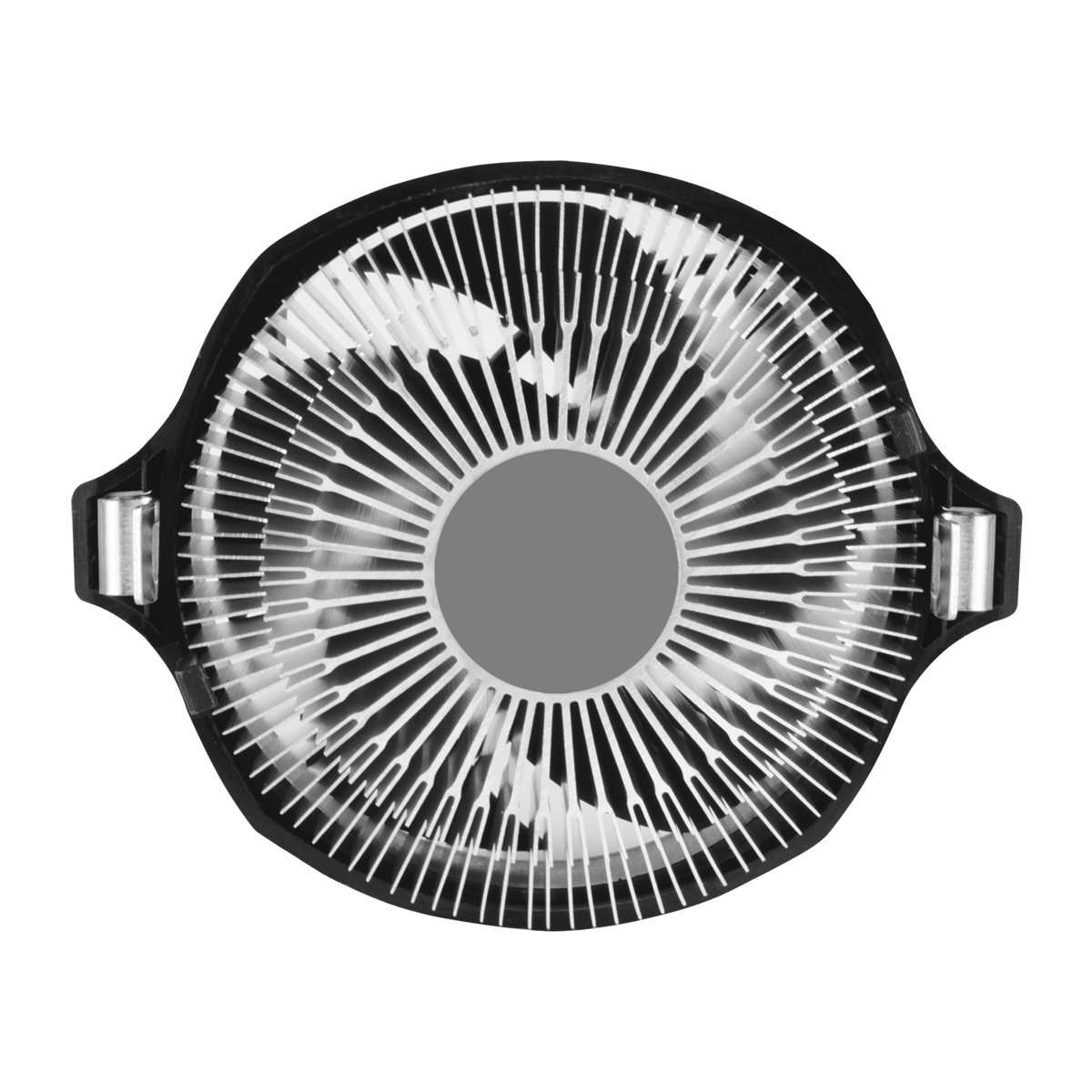

The high thermal conductivity of aluminum is fully retained by a new type of extrusion. This new production process creates a powerful yet very compact radial heat sink. The particularly thin cooling fins of the new Alpine are fanned out in a Y-shape. This increases the surface area of the heat sink and therefore the cooling capacity.

Wide rpm Range
The Alpine 23 CO features a new motor technology with a very wide, PWM-controlled rpm range. This keeps the noise level at a minimum while guaranteeing maximum cooling performance when needed.

Lower Power Consumption & Minimum Vibration
The new Alpine 23 CO is powered by an updated motor and runs much more efficiently than its predecessors. Due to sinus-magnetizing the new motor creates just 5 % of the vibration from the commutation of a regular DC motor. These factors contribute to saving energy, lowering the coil temperature, and reducing vibrations to a minimum without compromising performance.

For Continuous Operation
The premium quality dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential.

Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.

Pre-Applied MX-4 Thermal Paste
The pre-applied, high-performance MX-4 thermal compound ensures fast and clean installation.

Easy and Fast Installation
Thanks to the mounting clips, the installation is really easy. Alpine 23 CO is simply plugged into the existing AMD retention modules and screwed tight.

Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how to improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality but also durability. It’s a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer’s guarantee on the Alpine 23 CO.

Specifications of ARCTIC Alpine 23 CO Single Tower CPU Air Cooler

Model No ACALP00036A
General Specifications
Compatibillity AMD ® AM5, AM4
Heatsink Radial Heatsink
Fan Diameter 90 mm
TIM MX-4 pre-applied
Noise Level 0.3 Sone

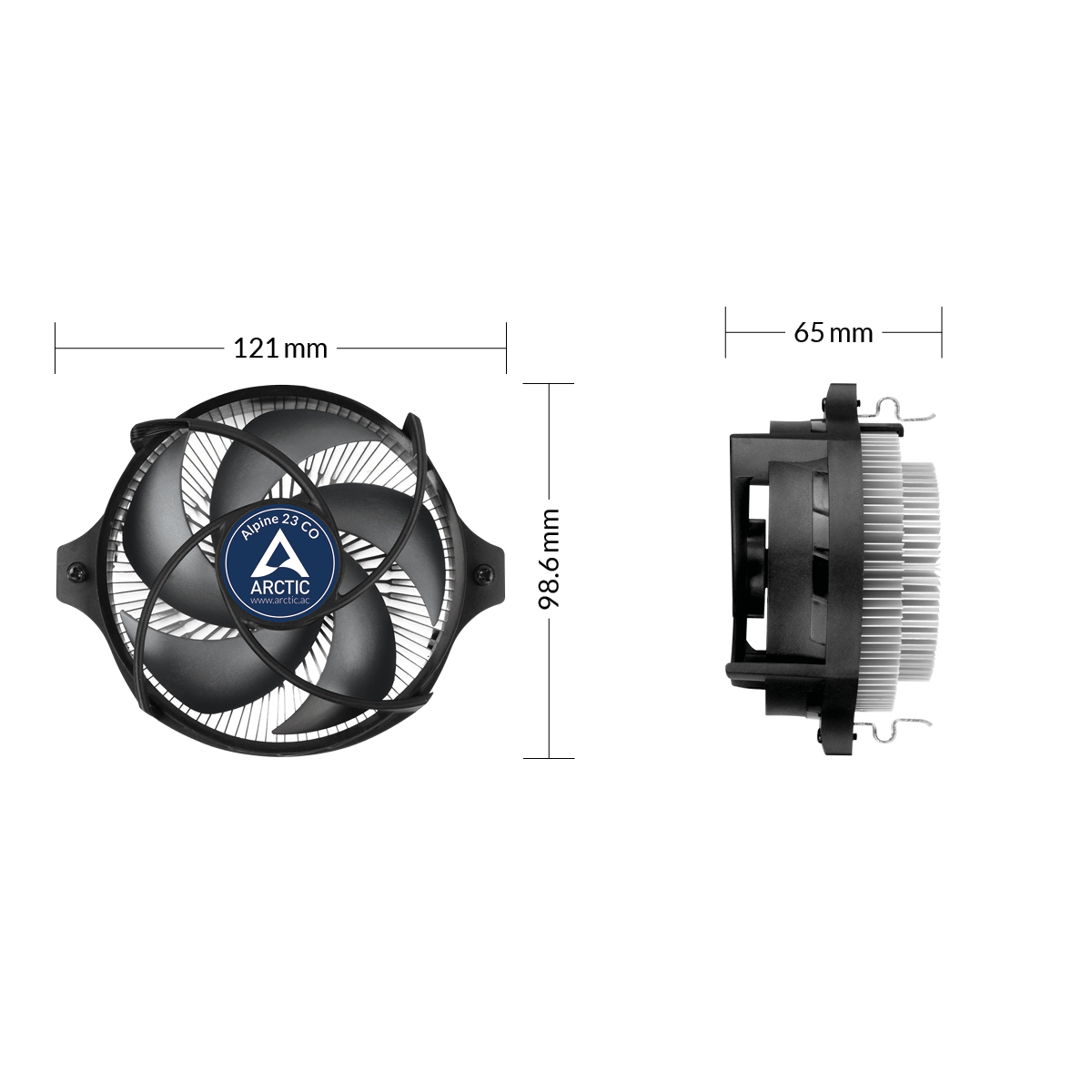

Dimensions 121 (L) x 98.6 (W) x 65 (H) mm
Installation Height 65 mm
Weight 275.5 g
Heatsink Specifications
Outer Diameter 93.4 mm
Core Diameter 32 mm
Number of Fins 50 Y-shaped fins
Material Aluminium
Fan Specifications
Speed 200–2700 rpm
Speed Control Pulse Width Modulation
Connector 4-Pin Connector
Bearing Dual Ball Bearing
Current | Voltage 0.09 A | 12 V
Shipping Information
Box Dimensions 111 (L) x111 (W) x 76 (H) mm
Gross Weight 338 g
EAN 4895213702836
UPC 840033400633
Warranty 6 Years
